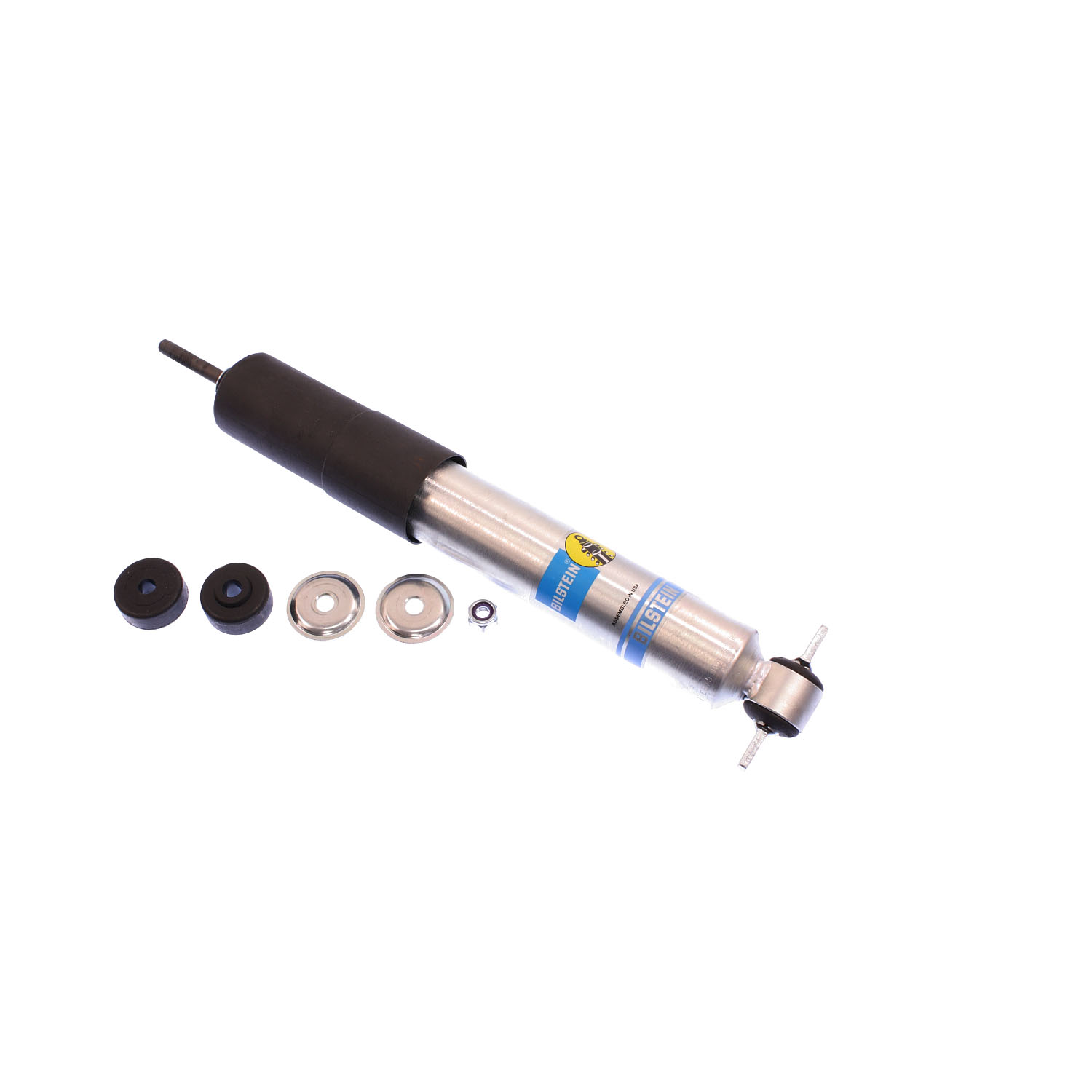

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV's. These shock absorbers feature a monotube design which provides consistent fade free performance.

B8 5100 shock absorbers utilize a unique, velocity sensitive, Digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved.

B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Details:

• Series: B8 5100
• Internal Design:Monotube
• Lift Height: 3.0 Inch
• Lower Mount Type: Bar Pin
• Upper Mount Type: Stem
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-Coilover)
• Collapsed Length Inch: 10.15
• Extended Length Inch: 15.43
• Boot Included:Black Straight
• Pistion Diameter: 46mm
• Postion: Front
• Reservior: No
• Shaft Diameter: 14mm
• Stroke Travel Length In: 5.28
• Stroke Travel Length In: 134.1
• Notes: For Front Lifted Height 3 Inch with a-arm style lift For Front Lifted Height 6 Inch with a-arm and lift spindle style lift
• Applications: Ford Ranger 2011-1998, Mazda B2300 2009-2001, B2500 2001-1998, B3000 2001-1998, B3000 2007-2003, B4000 2000-1998
• Warranty: Limited Lifetime Warranty
