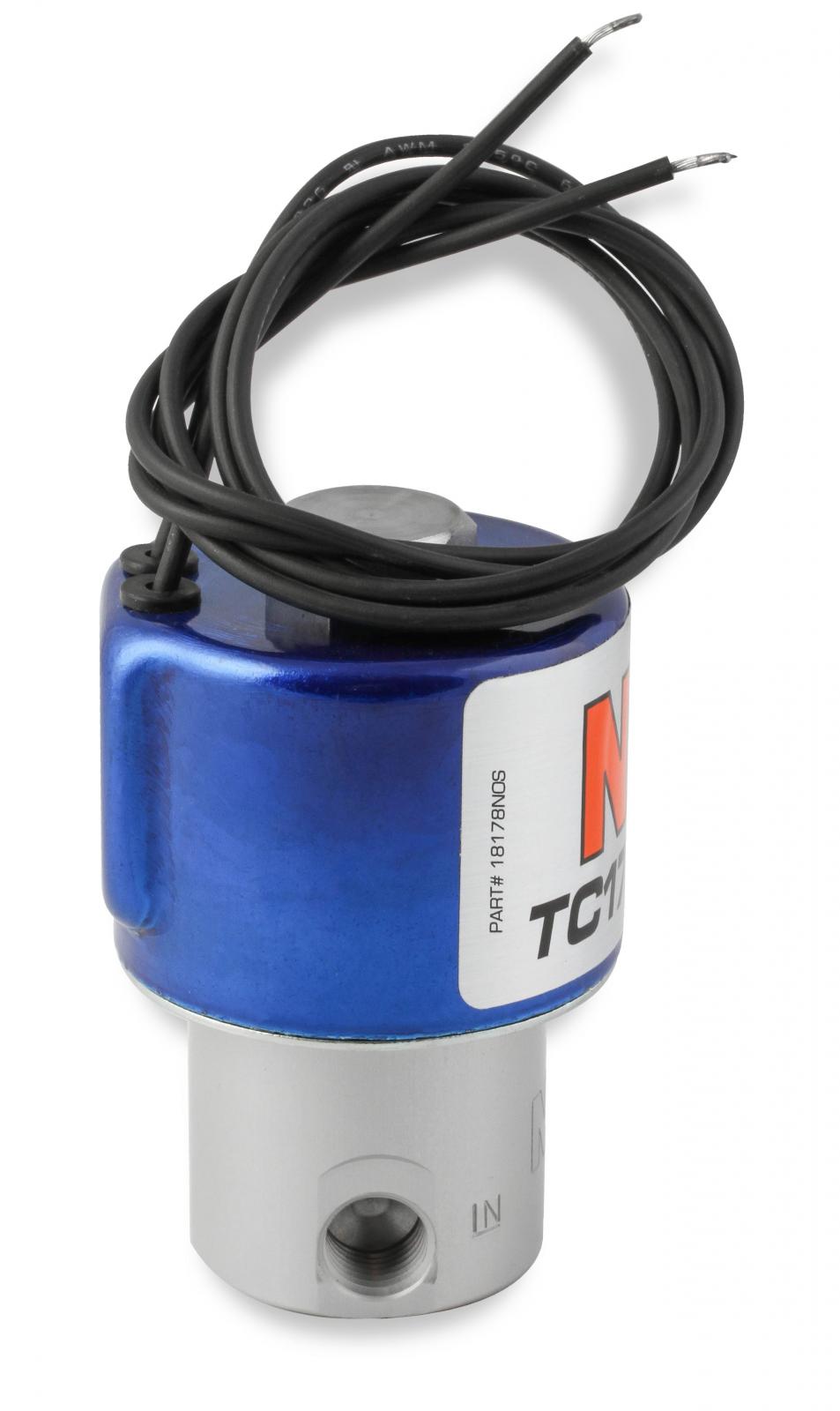

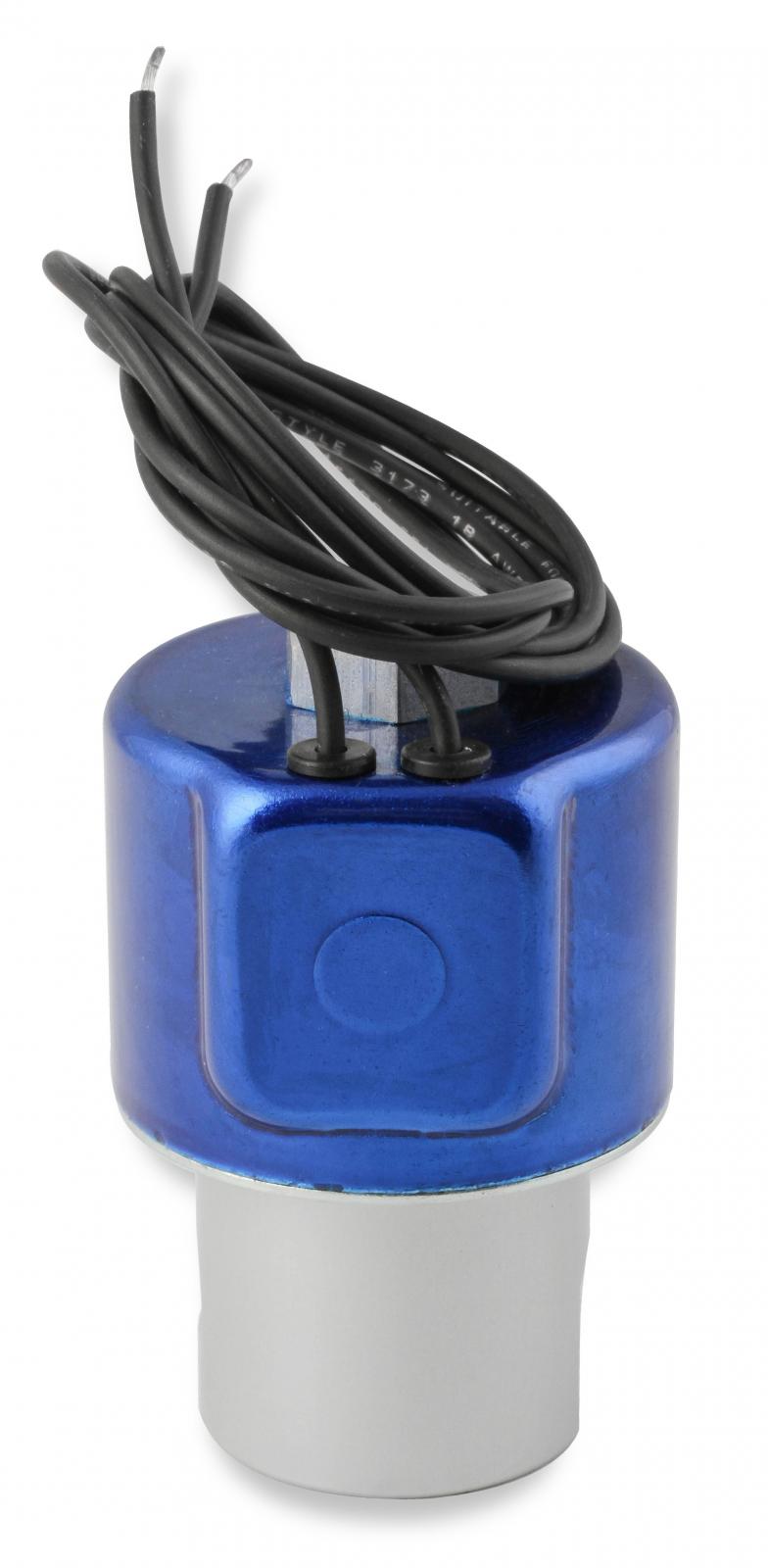

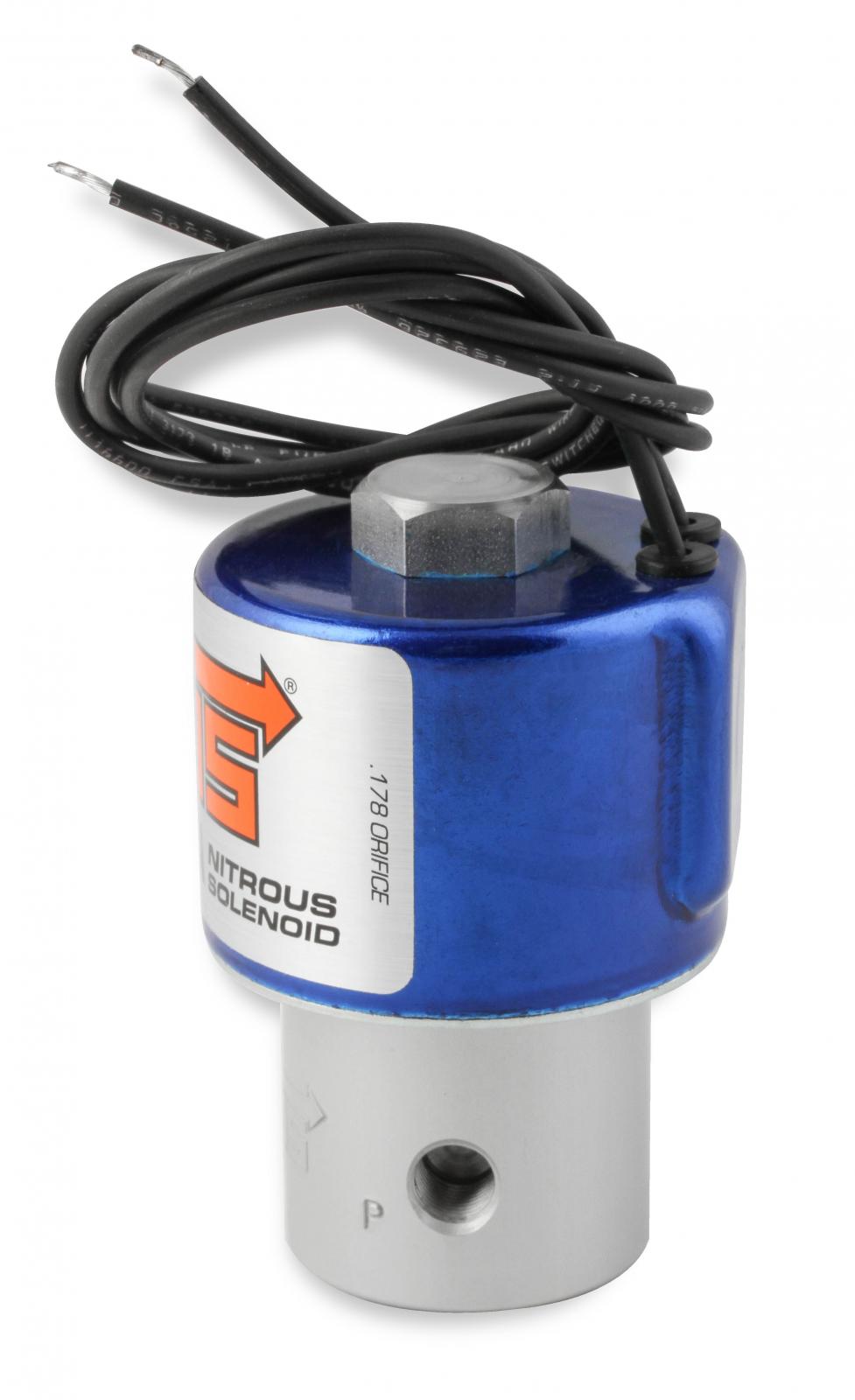

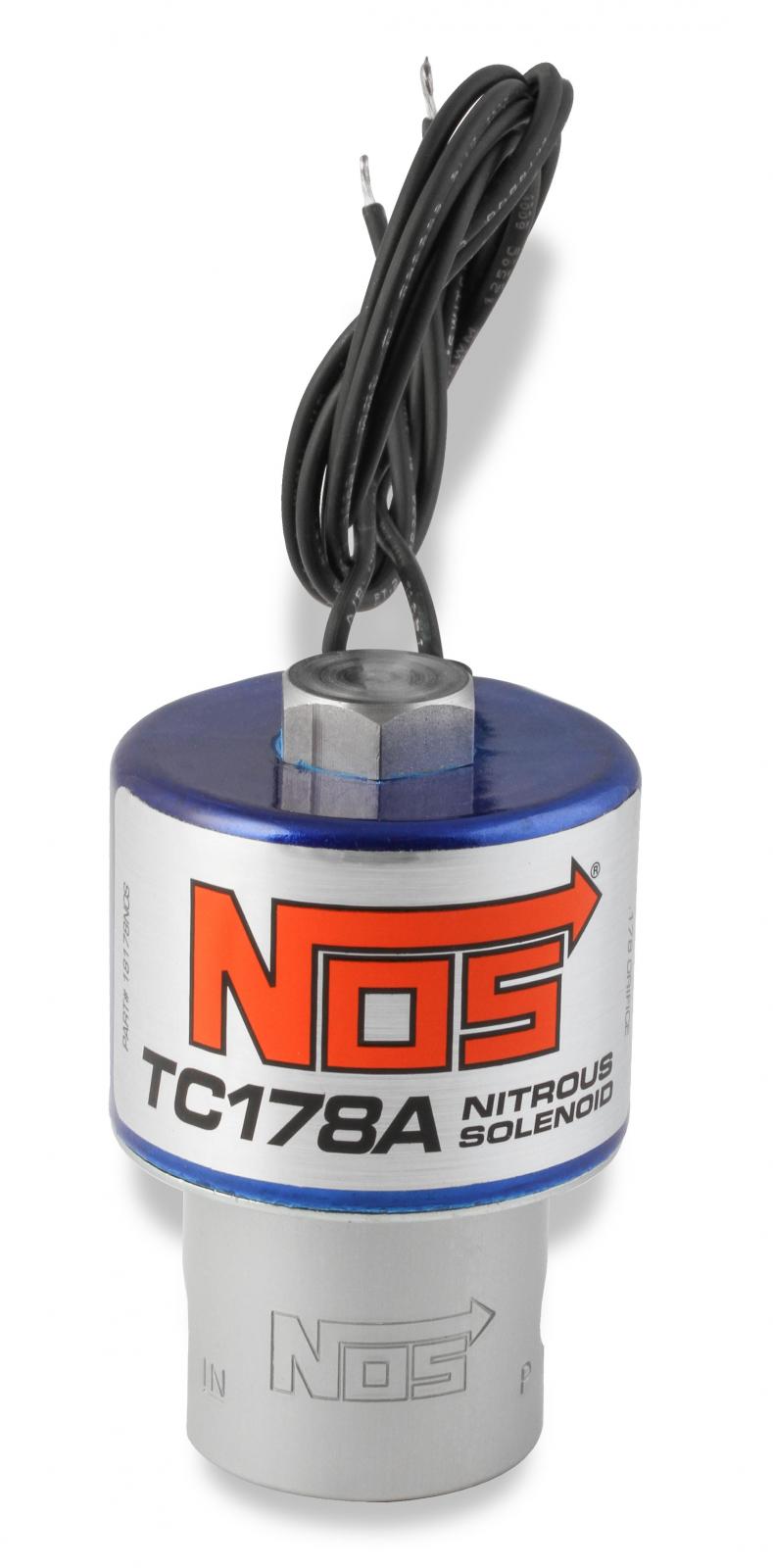

NOS TC178 Nitrous Solenoid was developed for one purpose

• deliver the most nitrous volume possible for a single solenoid. With a 0.178 Inch outlet orifice, the TC178 has the ability to flow in excess of 900 horsepower of nitrous from a single solenoid. The TC178 base is also constructed of 6061 Aluminum and then clear anodized. This reduces the weight by 1/4 of a pound over the NOS Super BigShot Trash Can Solenoid, and still retains the mounting location on the base. If maximum power from a single stage of nitrous is what you need, get the new NOS TC17
• Current Draw is 20 Amps at 12 volts DC.
• This Solenoid can be used with a progressive controller
• Supports in excess of 900 horsepower
• Inlet Port Size - 1/4 Inch NPT (Side)

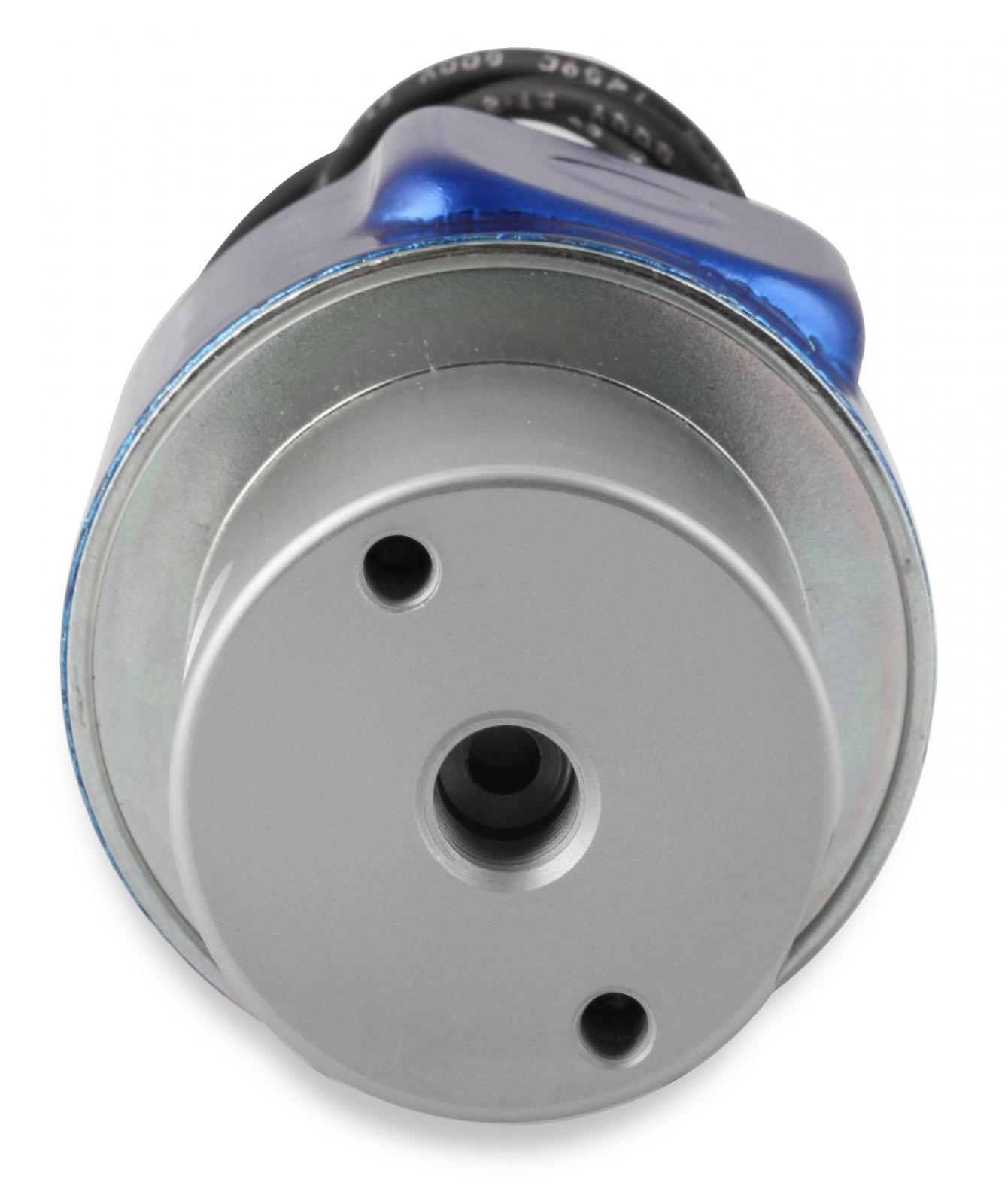

• Outlet Port Size - 1/8 Inch NPT (Bottom)
• Purge Port Size - 1/8 Inch NPT (Side)
• Orifice - 0.178 Inch
• Plunger - PTFE
• Light Weight Aluminum - 1.66 lbs.
• Material - 6061 Aluminum
• Saves 1/4 lb. over similar steel solenoids

Details:

• AMP DRAW: 20A
• Bracket(s) Included: No
• Color: Blue
• Emission Code: 4
• Finish: Natural
• Fittings Included: No
• Inlet: Side
• Inlet Attachment: Female Threads
• Inlet Thread: 1/4 inch NPT
• Material: 6061-T6 Aluminum
• Max Horsepower: 900
• Orifice: 0.178 inch
• Outlet: Bottom
• Outlet Attachment: Female Threads
• Outlet Thread: 1/8 inch NPT
• Plunger Material: PTFE
• Purge Port: 1/8 inch NPT
• Solenoid Top Cover Color: Blue
• Warranty: Manufacturer's Limited 90 Day Warranty
