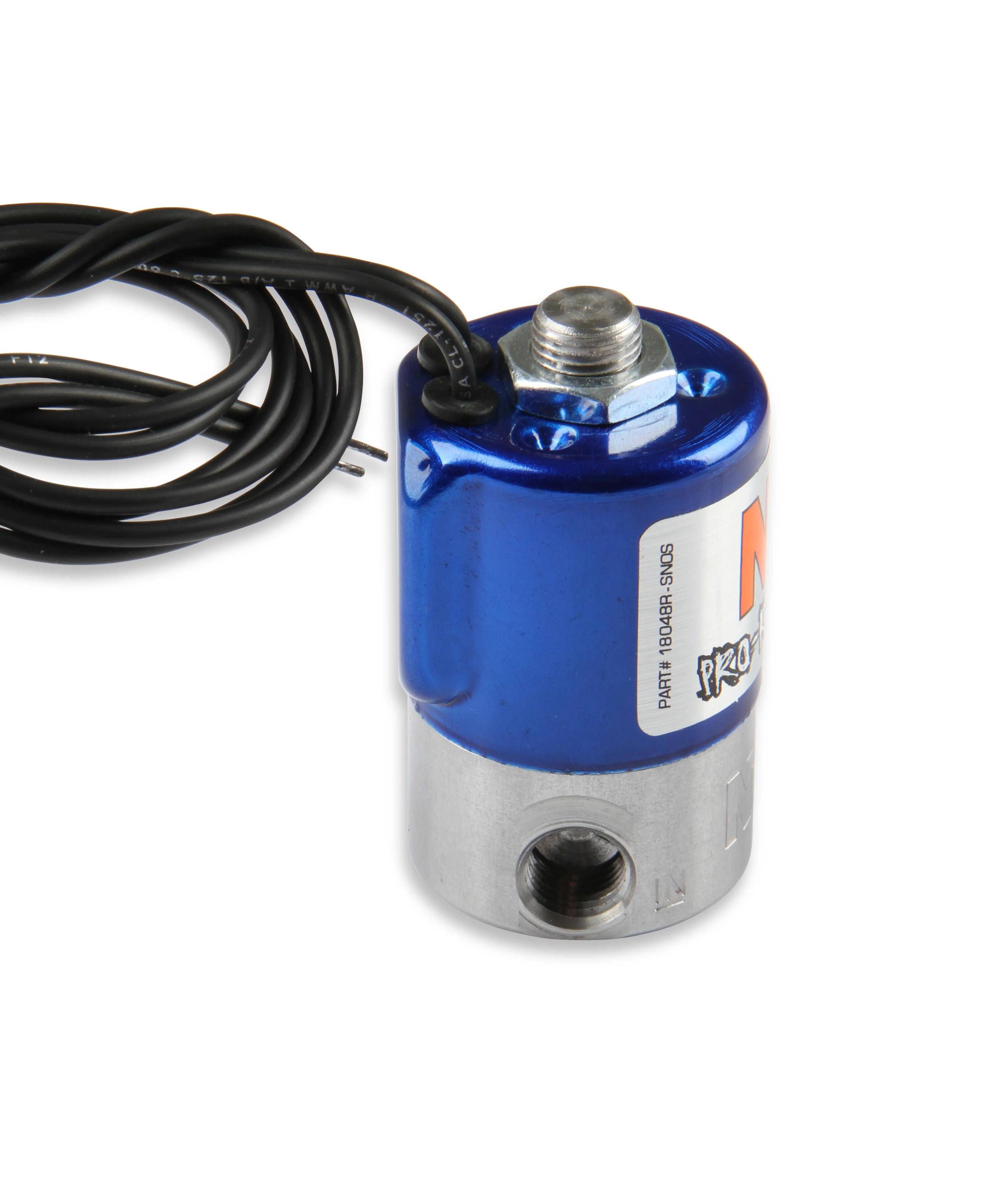

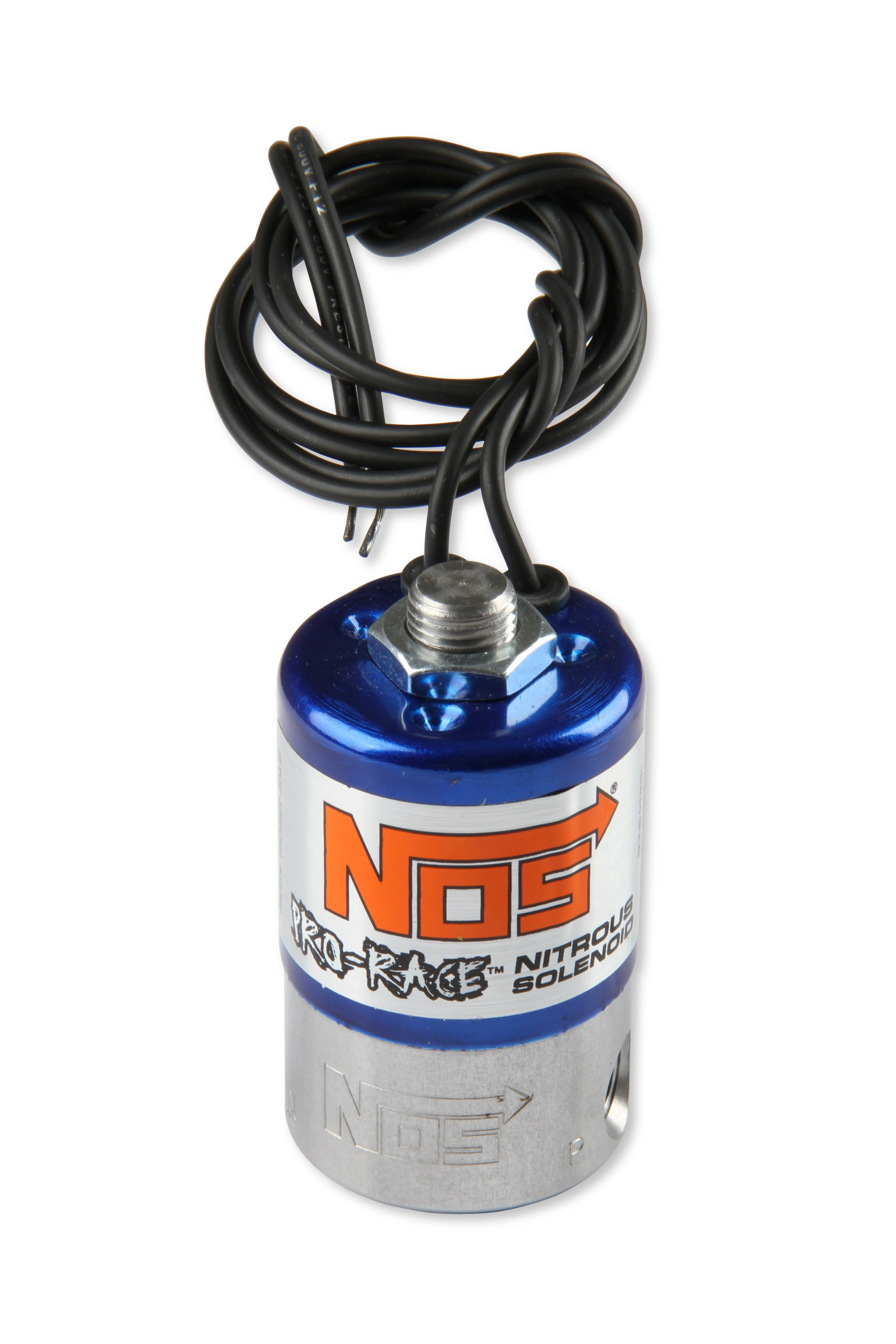

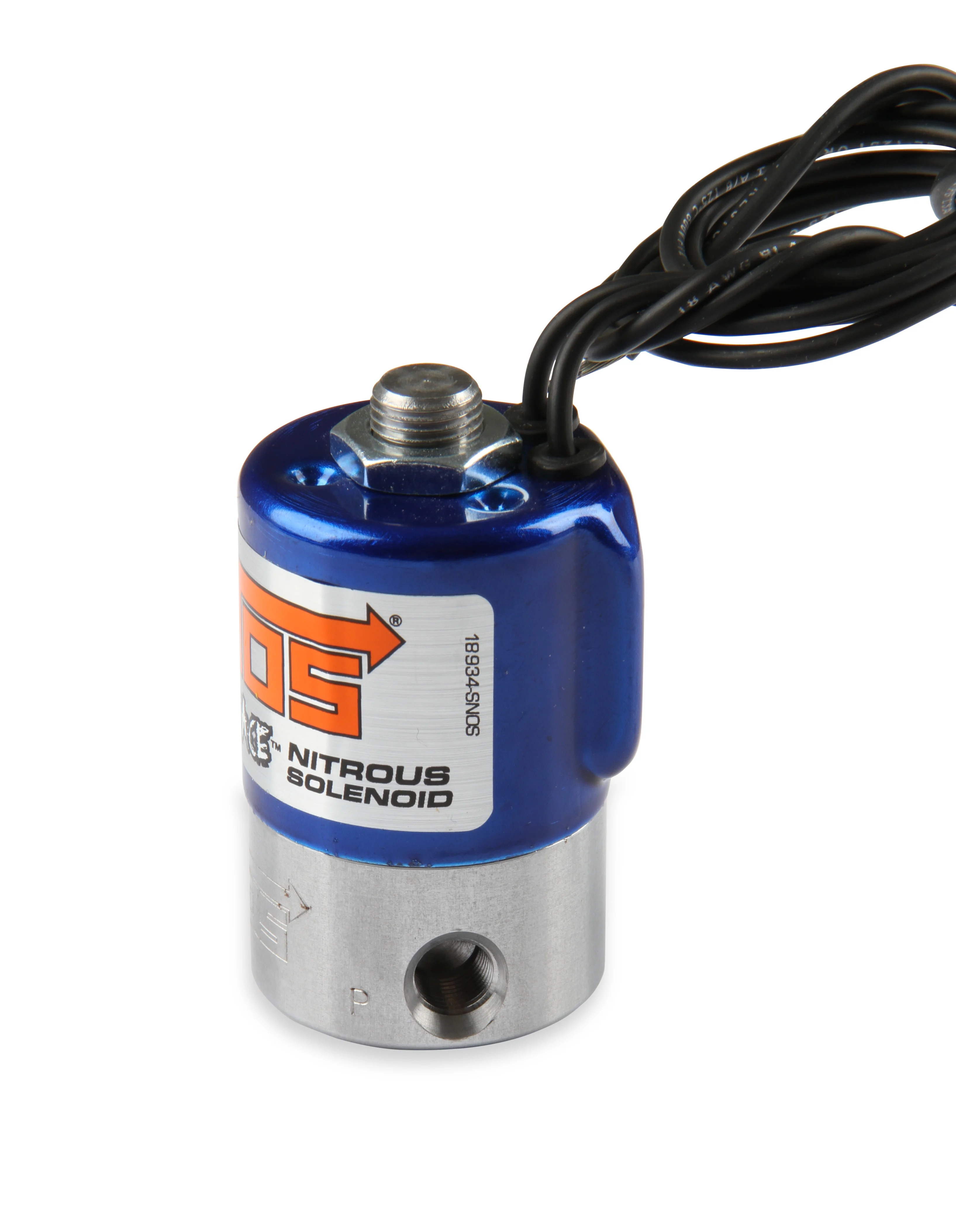

NOS Solenoids are designed for optimum flow and operation. The nitrous solenoids also feature a blue powder-coated housing whereas the NOS fuel solenoids feature a red powder-coated housing for easy identification and good looks.

All NOS solenoids also feature stainless steel bases with the NOS logo stamped in so you know it is a quality NOS solenoid.

• 1/4 Inch NPT Inlet and 1/8 Inch NPT Bottom Outlet
• Now includes a 1/8 Inch NPT Purge Port on the side
• 0.125 inch Orifice
• PTFE Plunger
• 11.5 amp draw @ 12VDC
• Up to 450 HP

Details:

• AMP DRAW: 11.5A
• Bracket(s) Included: No
• Color: Blue
• Emission Code: 4
• Finish: Natural
• Fittings Included: No
• Inlet: Side
• Inlet Attachment: Female Threads
• Inlet Thread: 1/4 inch NPT
• Material: Stainless Steel
• Max Horsepower: 450
• Orifice: 1/8 inch (0.125 inch)
• Outlet: Bottom
• Outlet Attachment: Female Threads
• Outlet Thread: 1/8 inch NPT
• Plunger Material: PTFE
• Purge Port: 1/8 inch NPT
• Solenoid Top Cover Color: Blue
• Warranty: Manufacturer's Limited 90 Day Warranty
