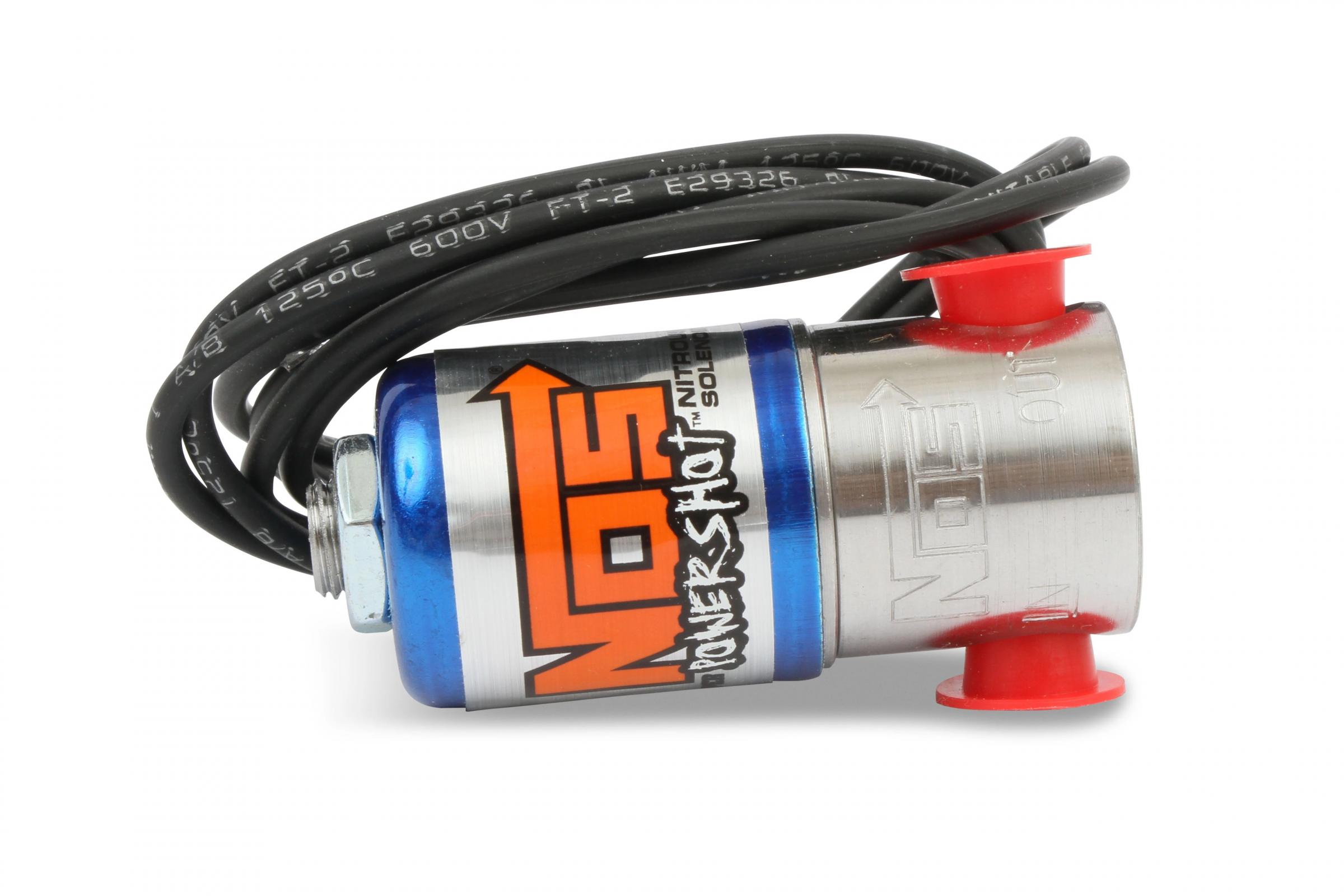

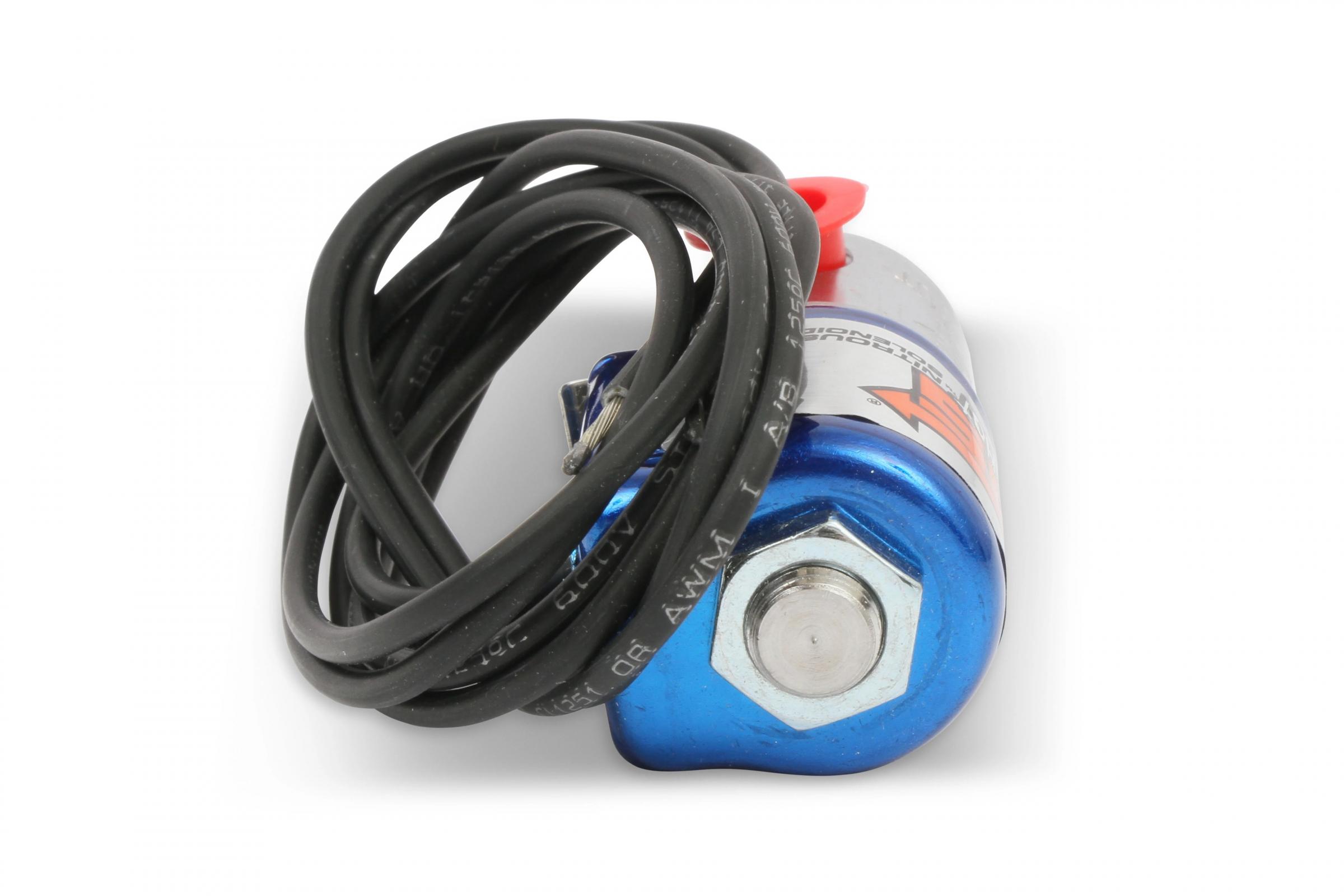

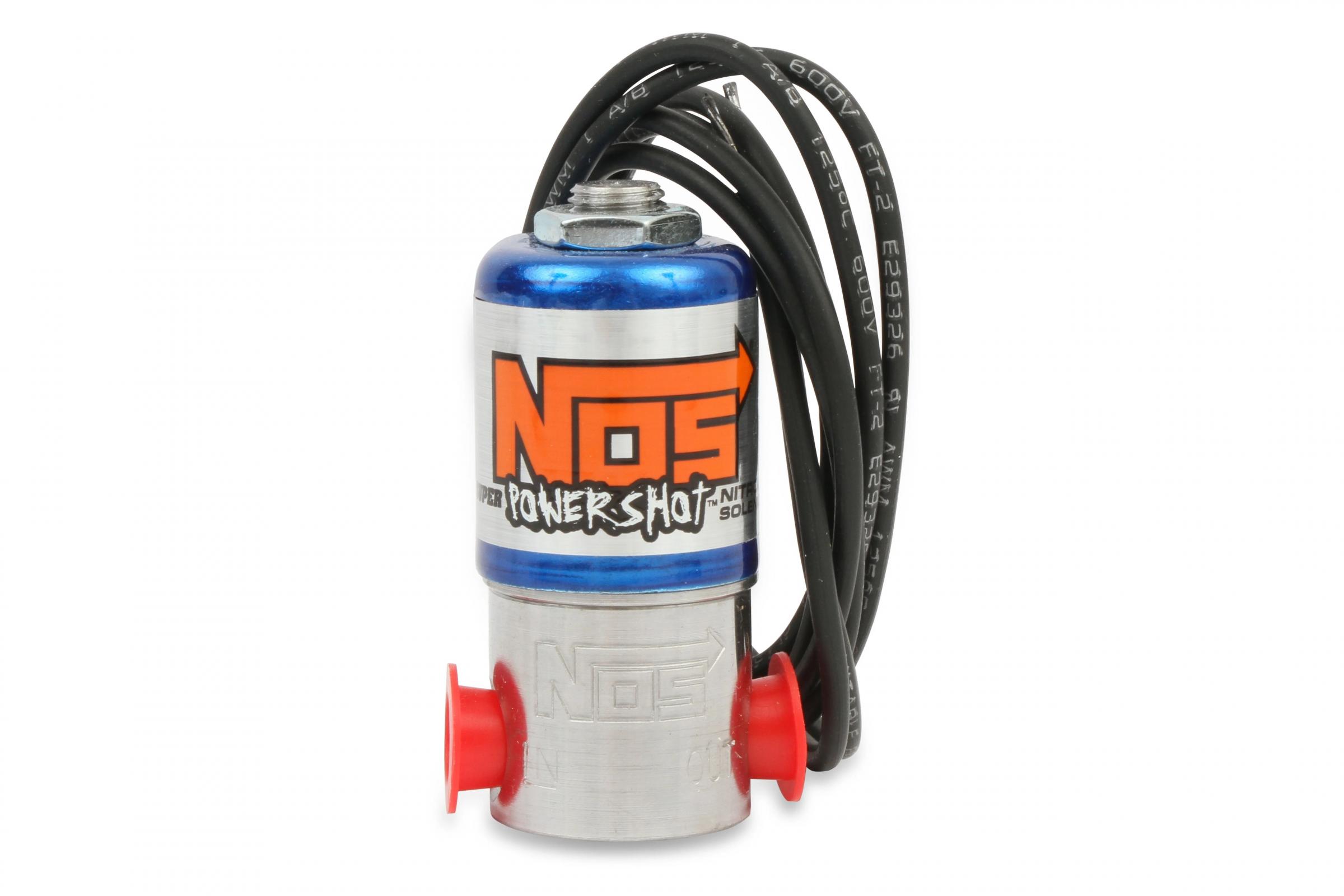

NOS solenoids have been the standard in the performance and racing world for over 35 years and are designed for optimum flow and operation. NOS has overhauled the entire line with new features and new part numbers.

The nitrous solenoids feature a blue powder coated housing, large orifice sizes and PTFE plunger puck material for durability. All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

• Inlet size - 1/8 Inch
• Outlet Size - 1/8 Inch
• Outlet Location - side
• Orifice - 5/64 Inch (0.078 Inch)
• Plunger - PTFE
• Current Draw @ 12VDC - 10.3 amps

Details:

• AMP DRAW: 10.3A
• Bracket(s) Included: No
• Color: Blue
• Emission Code: 4
• Finish: Natural
• Fittings Included: No
• Inlet: Side
• Inlet Attachment: Female Threads
• Inlet Thread: 1/8 inch NPT
• Material: Stainless Steel
• Max Horsepower: 175
• Orifice: 5/64 inch (0.078 inch)
• Outlet: Side
• Outlet Attachment: Female Threads
• Outlet Thread: 1/8 inch NPT
• Plunger Material: PTFE
• Purge Port: None
• Solenoid Top Cover Color: Blue
• Warranty: Manufacturer's Limited 90 Day Warranty
