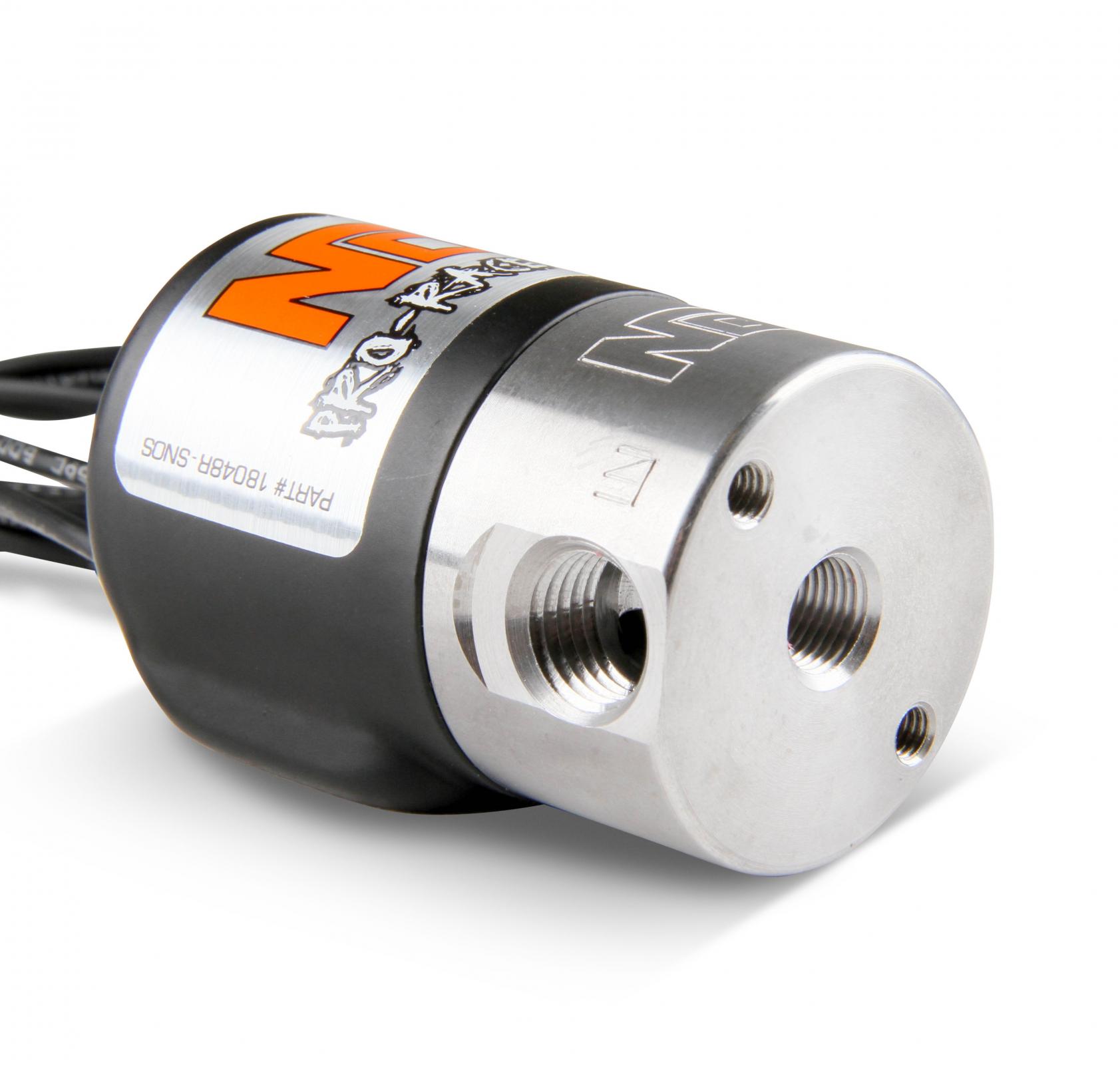

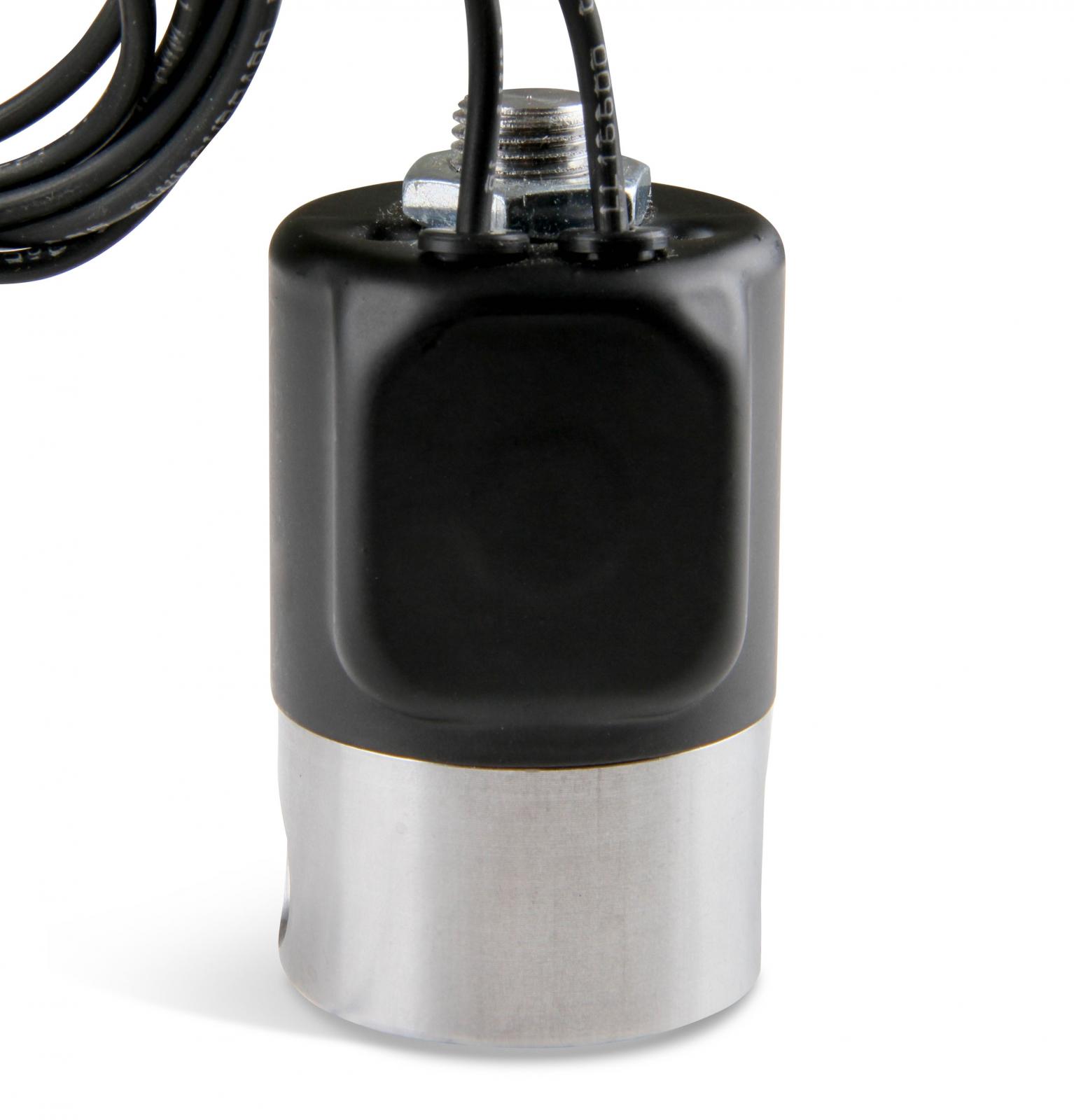

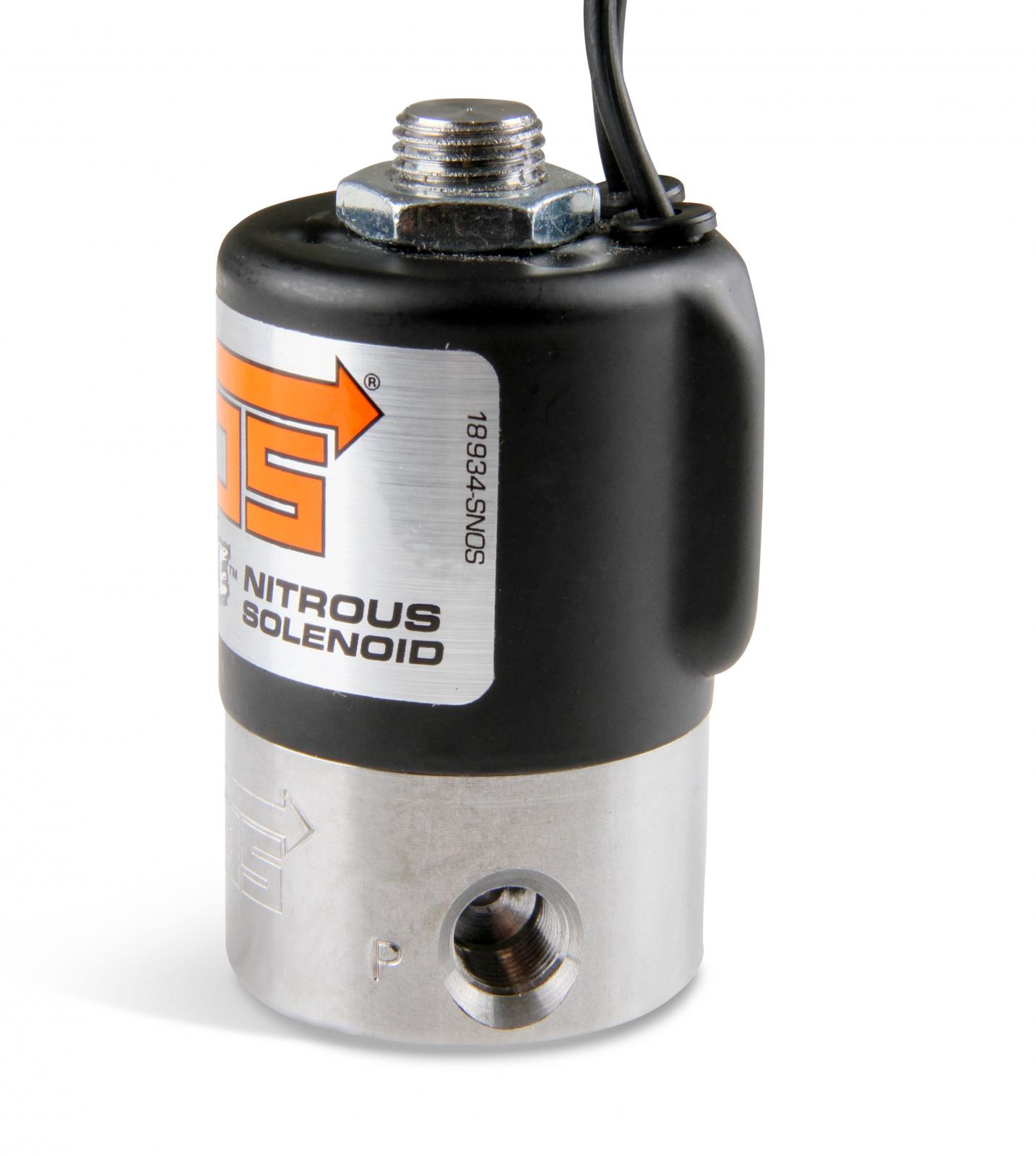

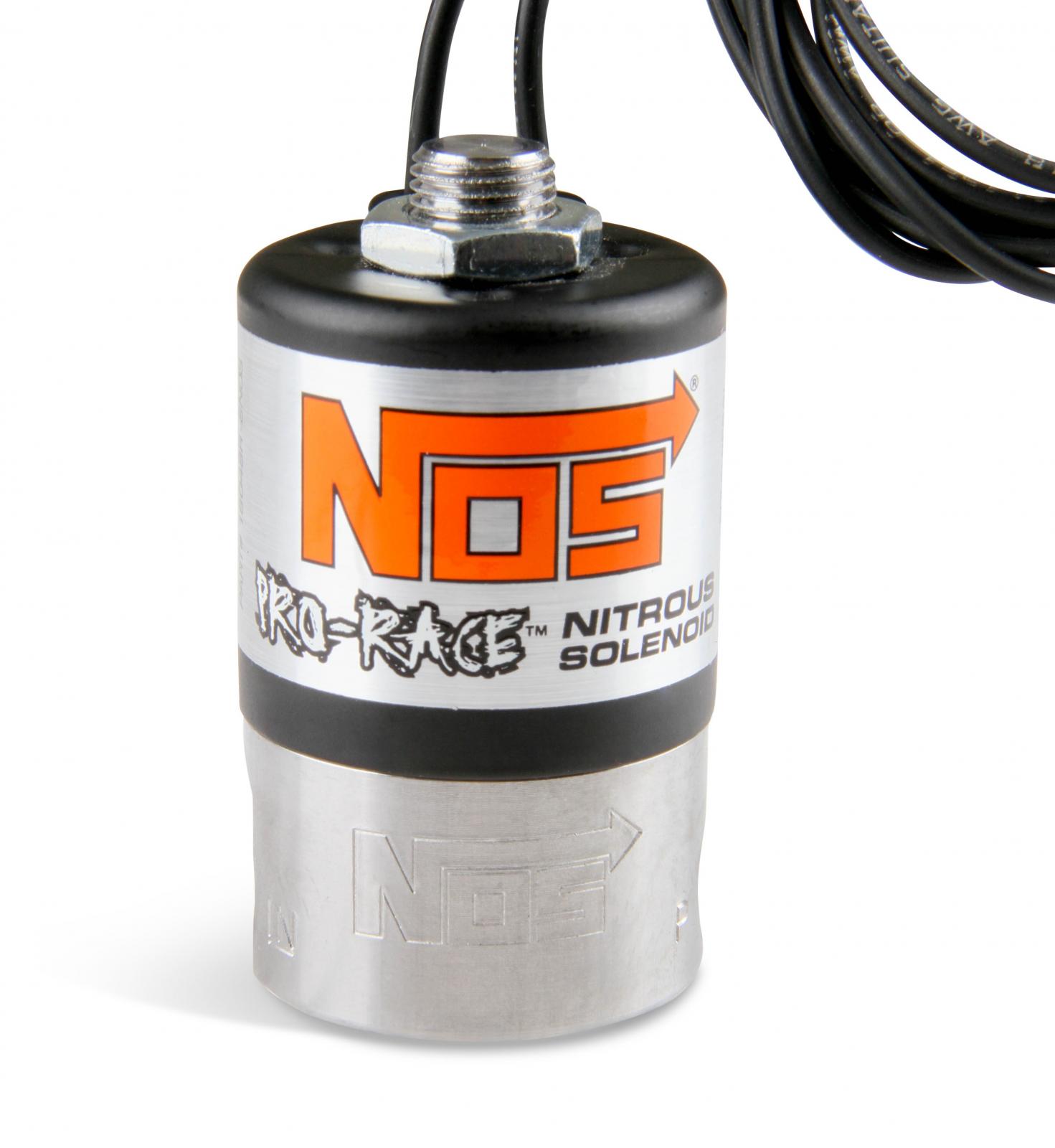

NOS bottom exit Pro-Race nitrous and fuel solenoids gives you the flexibility for mounting options in various positions. They are available with black or red powder coated top housing.

All of our solenoids feature large orifice sizes for great flow. Our nitrous solenoids have a PTFE plunger puck material for durability while our fuel solenoids have FKM rubber plunger pucks for durability and sealing.

All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

• Inlet Size - 1/4 Inch NPT
• Inlet Location - Side
• Outlet Size - 1/8 Inch NPT
• Outlet Location - Bottom
• Orifice - 1/8 Inch (0.125 inch)
• Purge Port - 1/8 Inch NPT
• Plunger - PTFE
• Current Draw @ 12VDC - 11.5 amps
• Supports up to 450 HP
• Black Powder Coated Cover

Details:

• AMP DRAW: 11.5A
• Bracket(s) Included: No
• Color: Black
• Emission Code: 4
• Finish: Natural
• Fittings Included: No
• Inlet: Side
• Inlet Attachment: Female Threads
• Inlet Size: 1/4 inch NPT
• Inlet Thread: 1/4 inch NPT
• Material: Stainless Steel
• Max Horsepower: 450
• Orifice: 1/8 inch (0.125 inch)
• Outlet: Bottom
• Outlet Attachment: Female Threads
• Outlet Size: 1/8 inch NPT
• Outlet Thread: 1/8 inch NPT
• Plunger Material: PTFE
• Purge Port: 1/8 inch NPT
• Solenoid Top Cover Color: Black
• Warranty: Manufacturer's Limited 90 Day Warranty
