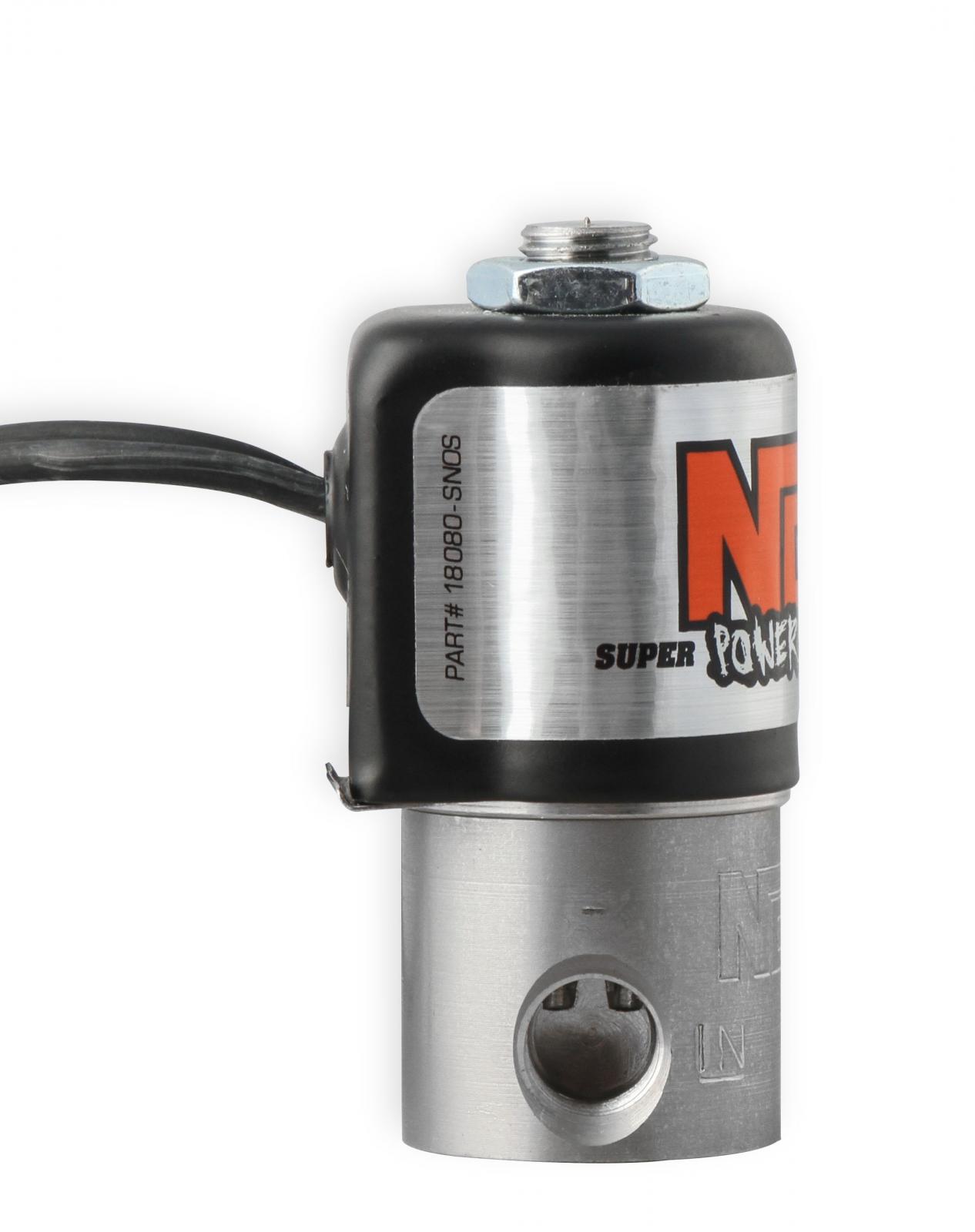

NOS Powershot solenoids have been the standard in the performance and racing world for years and are designed for optimum flow and operation. These solenoids feature a black powder coated housing for good looks and large orifice sizes.

All NOS solenoids feature stainless steel bases with the NOS logo along with in/out stamped in so you know it is a quality NOS solenoid.

• Inlet Size - 1/8 Inch NPT
• Outlet Size - 1/8 Inch NPT
• Outlet Location - side
• Orifice - 0.125 inch
• Plunger - Fluorocarbon (FKM) Rubber Plunger
• Current Draw @12VDC - .6 amps
• Up to 200 HP
• Supports up to 200 HP
• Black Powder Coated Cover

Details:

• AMP DRAW: 0.6A
• Bracket(s) Included: No
• Color: Black
• Emission Code: 4
• Finish: Natural
• Fittings Included: No
• Inlet: Side
• Inlet Attachment: Female Threads
• Inlet Thread: 1/8 inch NPT
• Material: Stainless Steel
• Max Horsepower: 200
• Orifice: 1/8 inch (0.125 inch)
• Outlet: Side
• Outlet Attachment: Female Threads
• Outlet Thread: 1/8 inch NPT
• Plunger Material: Fluorocarbon Rubber (FKM)
• Purge Port: None
• Solenoid Top Cover Color: Black
• Warranty: Manufacturer's Limited 90 Day Warranty
