The NOS Plate Only kit allows our customers to build a custom nitrous system for their 2010-2015 Chevrolet Camaro, or any application using a GM LS style, 90mm, 4-bolt throttle body. This ultra-slim design is only 1/4 Inch thick at the throttle body mounting flange.

This allows maximum room forward of the throttle body to clear accessory drives, tensioner brackets or other obstacles that may interfere with a more forward mounted throttle body.

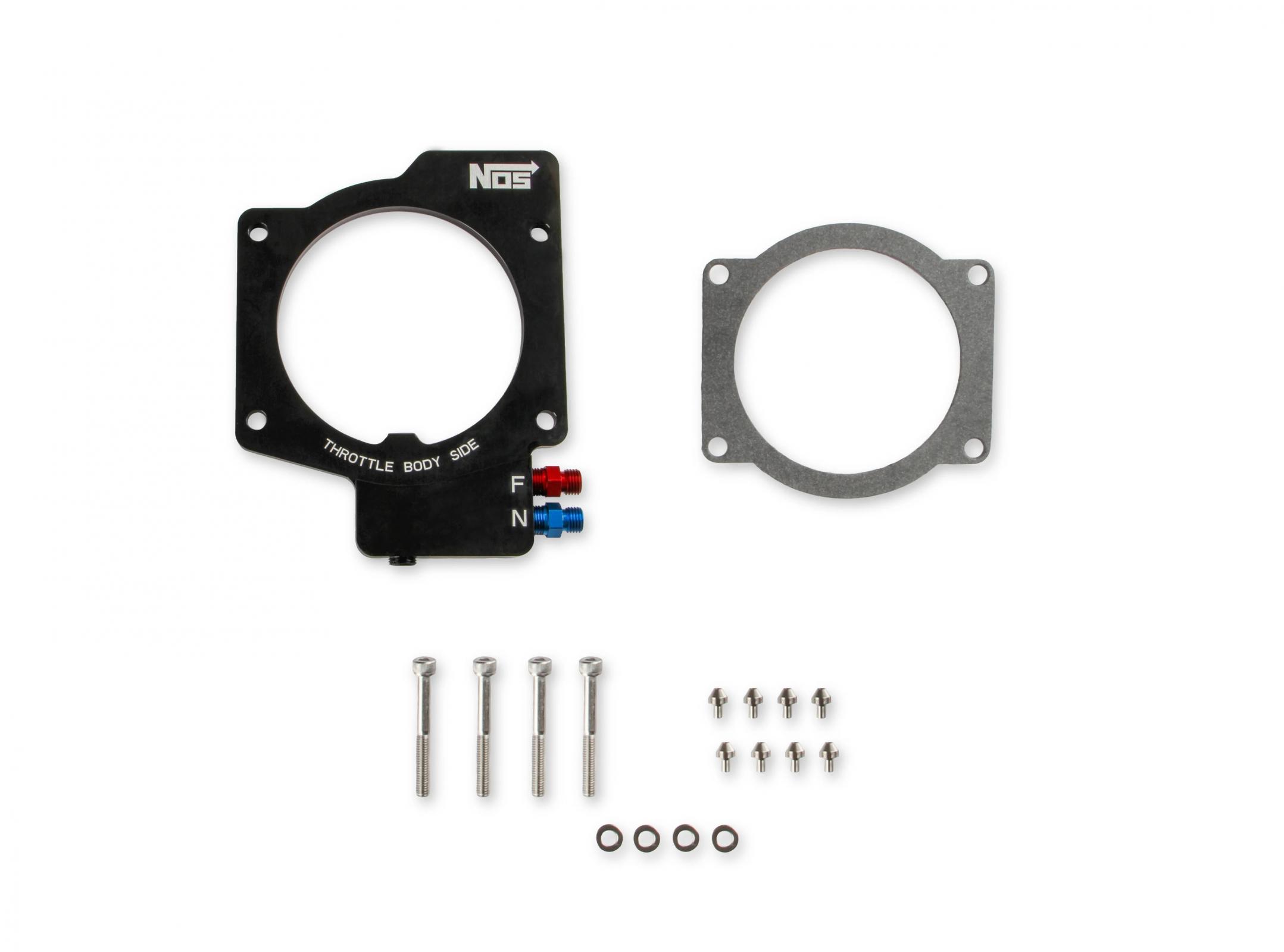

• This kit includes a 6061 billet aluminum, black anodized nitrous plate, assembled and ready to bolt on, stainless socket head bolts, 8 NOS stainless jets to support power levels of 75, 100, 125 & 150 rear wheel horsepower increases.
• Single plate between the throttle body and manifold
• Throttle body mounts in stock orientation
• Supports up to 250 RWHP (Rear Wheel Horse Power)
• Includes jetting for 75, 100, 125, & 150 RWHP
• New plate outlet design maximizes distribution
• 6061 Billet Aluminum, CNC Machined Plate
• Also available as a complete kit for the 2010-2015 LS3 Camaro
• p/n 05160NOS

Details:

• Adjustable: Yes
• Bottle Included: No
• Color: Black
• Delivery Style: EFI Spacer Plate
• Emission Code: 4
• Included Jetting Horsepower: 75, 100, 125, 150
• Jet Sizes Included: 75, 100, 125, 150 hp
• Jet Style: Flare
• Material: 6061-T6 Aluminum
• Max Horsepower: 250
• Plate Bolt Pattern: 4 bolt
• Plate Diameter: 90 mm
• Plate Flange: GM 4-Bolt LS3
• Plate Height: 1/4 inch
• Plate Included: Yes
• Plate Thickness: 1/4 inch
• Style: Wet
• System Style: Wet
• Warranty: Manufacturer's Limited 90 Day Warranty
